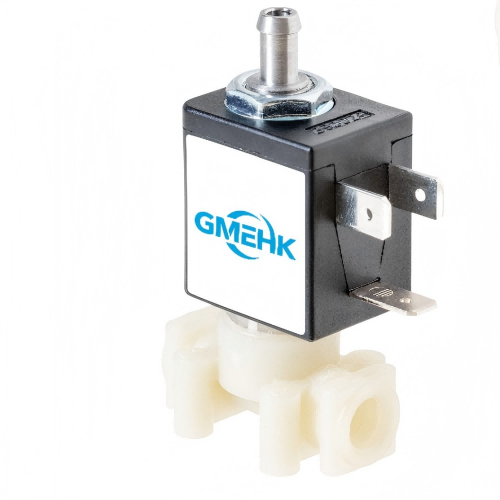

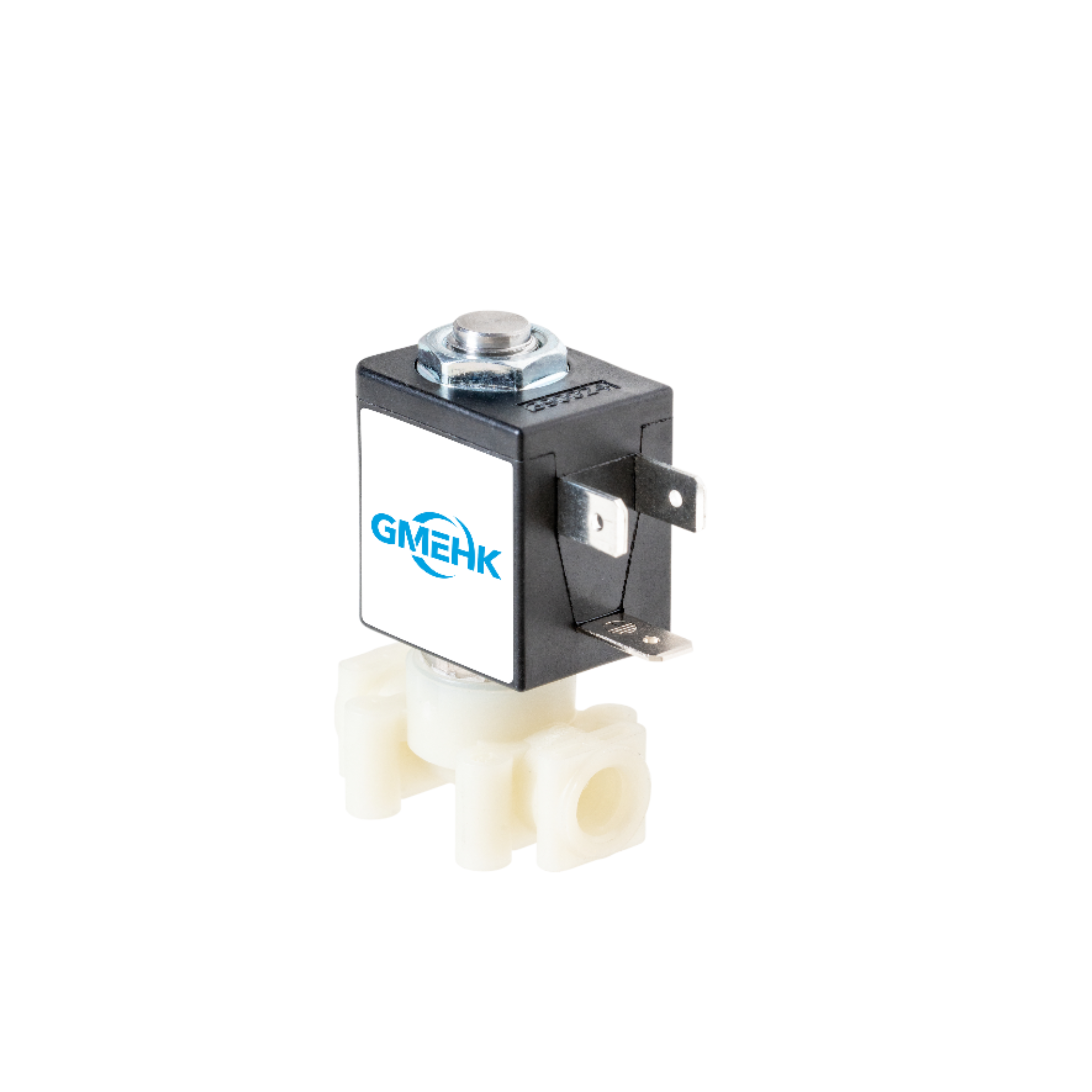

Model 330 /331  PA66+GF  2 ways / 3 ways Solenoid Valve

Voltage 24VDC, 230V 50Hz, 240V 60 HZ, 110V 50HZ, 120V 60Hz

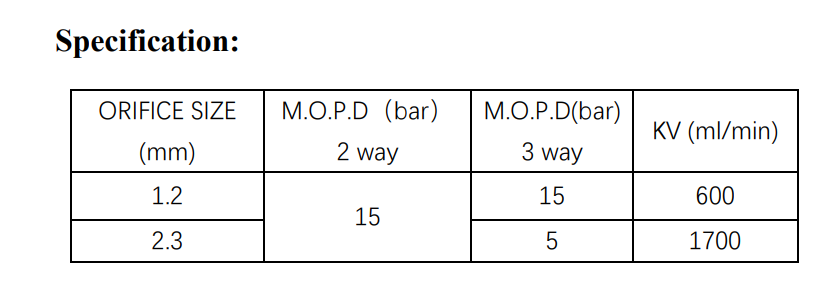

Orifice size : 1.2mm, 2.3 ㎜

Duty Circle : 100%

Max. allowable pressure  ： 30bar

Ambient Temperature  -10 ~ 60°C

Configuration : Normal Close

Material :

Body - PA66+GF

Pole piece : Stainless steel

Plunger : Stainless steel

Seal :FKM
