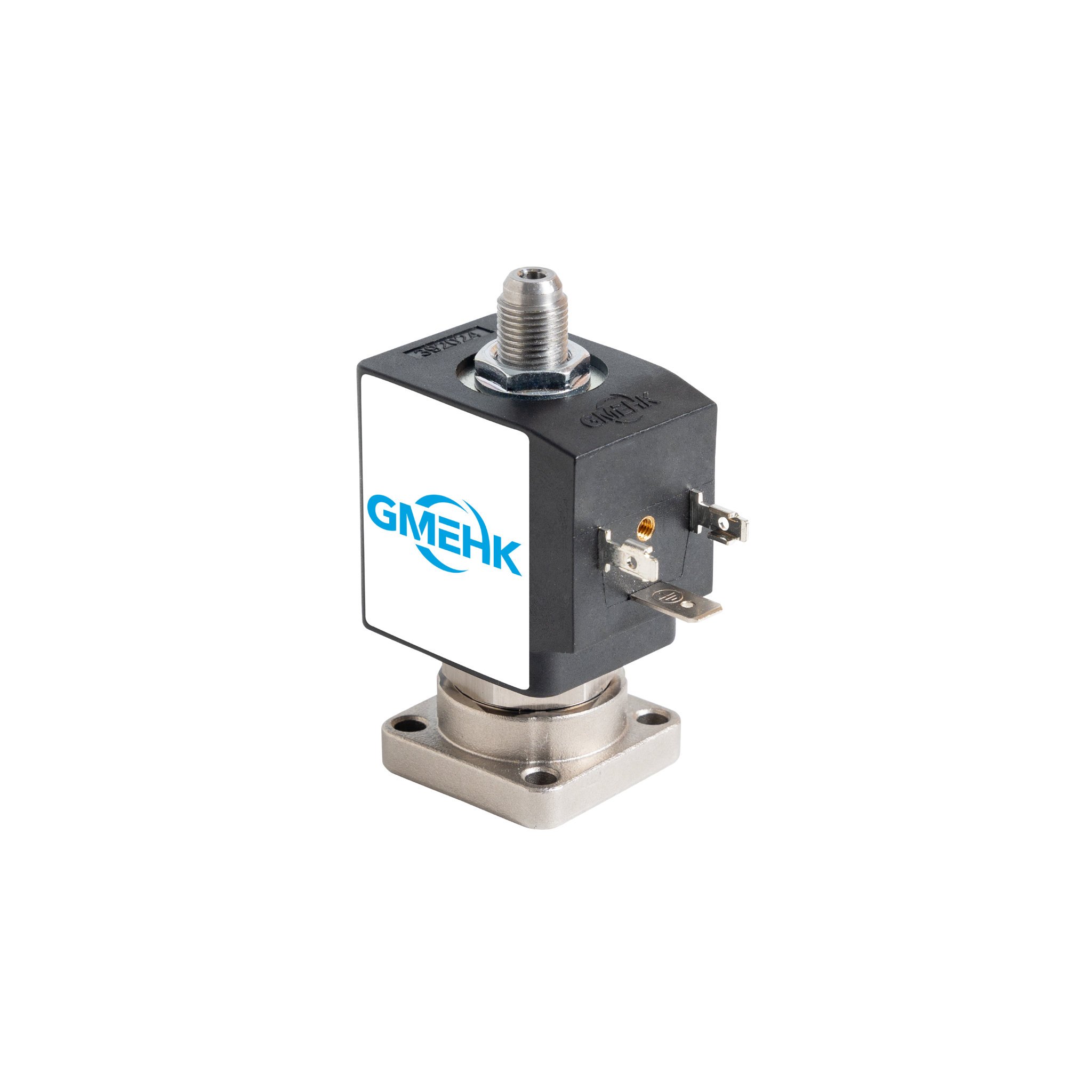

337, 338  Series Solenoid Valve

AWORKING SPECIFICATION

Voltage 24VDC , AC 230V 50Hz AC 240V 60Hz, AC110V  50Hz AC120V 60Hz.

Orifice size : 2.0mm, 3.0mm,

2 way- 337 series, 3way - 338 series

Duty Cycle 100%

337 Max. allowable pressure 30   Bar

338 Max. allowable pressure 20 Bar

Medium:  Water, Steam

Ambient Temperature -10 ~ 60°C

Medium Temperature 0~140℃

Configuration Normal Close

MATERIALS :  Stainless Steel,

Seal : FKM

Approval : CQC
