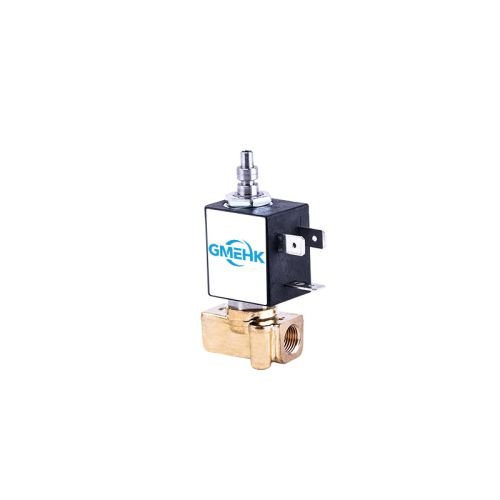

33X Series Solenoid Valve

AWORKING SPECIFICATION

Voltage 24VDC , AC 230V 50Hz AC 240V 60Hz, AC110V  50Hz AC120V 60Hz.

Orifice size 1.2mm, 2.3 ㎜

Duty Cycle 100%

Max. allowable pressure 40 Bar

Medium Water, Steam

Ambient Temperature -10 ~ 60°C

Medium Temperature 0~140℃

Configuration Normal Close

MATERIALS : Brass , Stainless Steel,

Approvals : CE , CQC

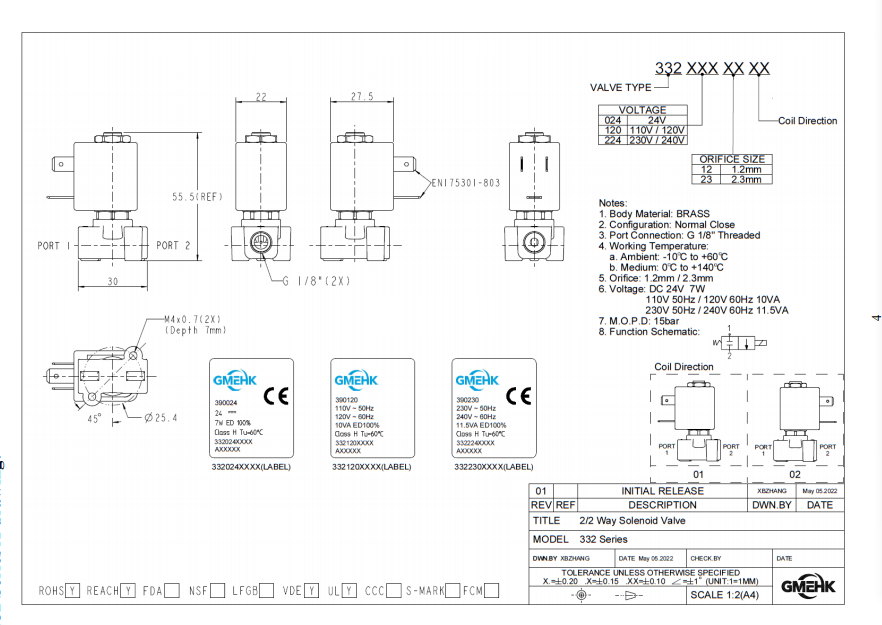

Spec.
